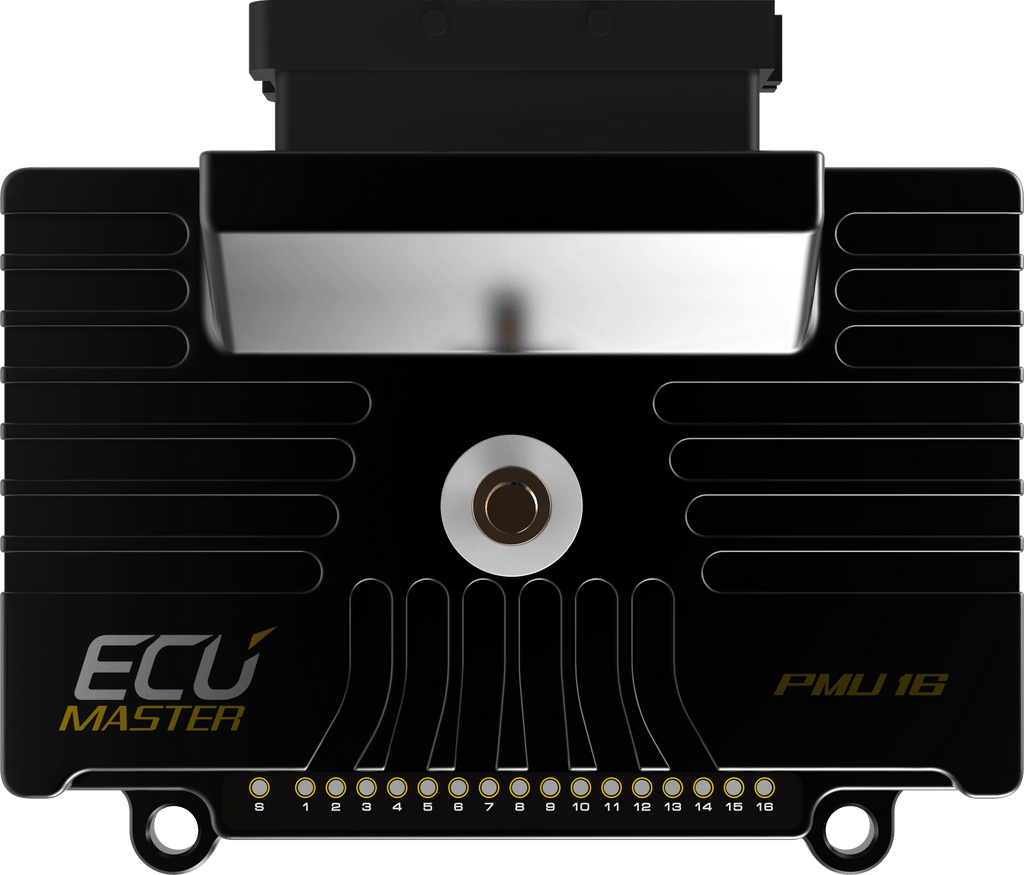

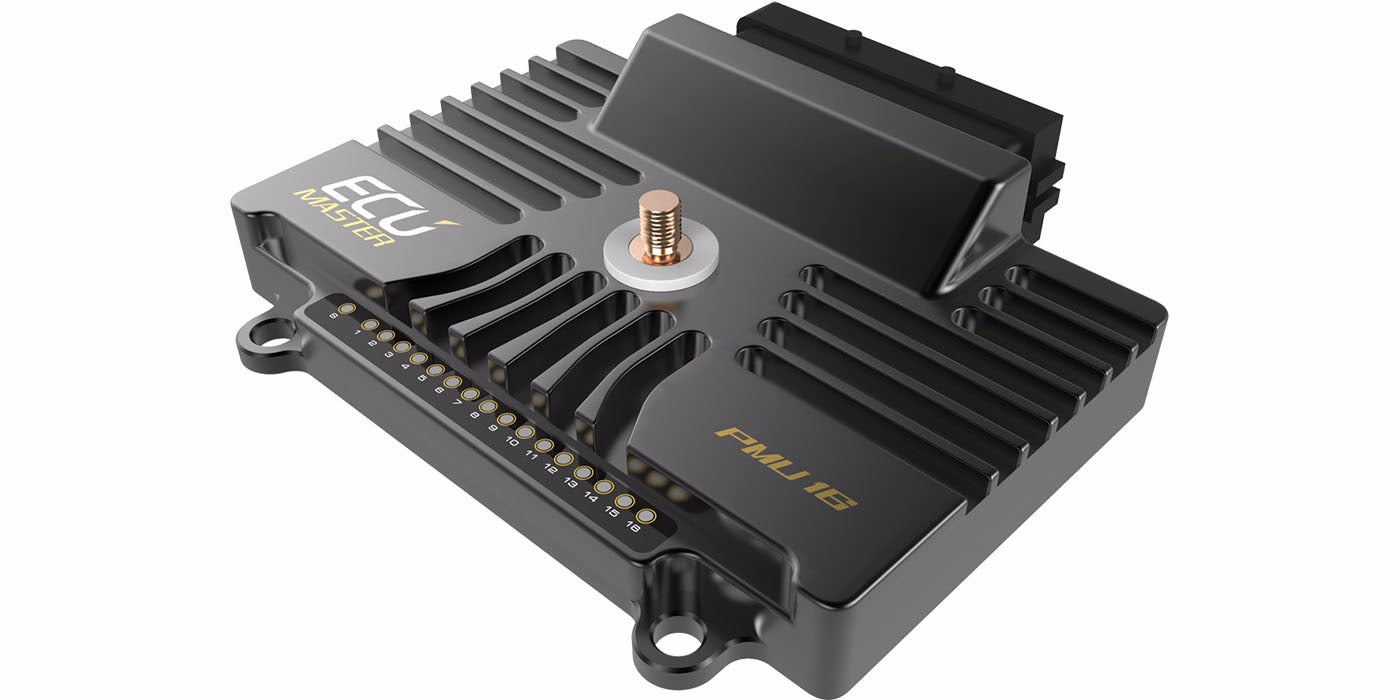

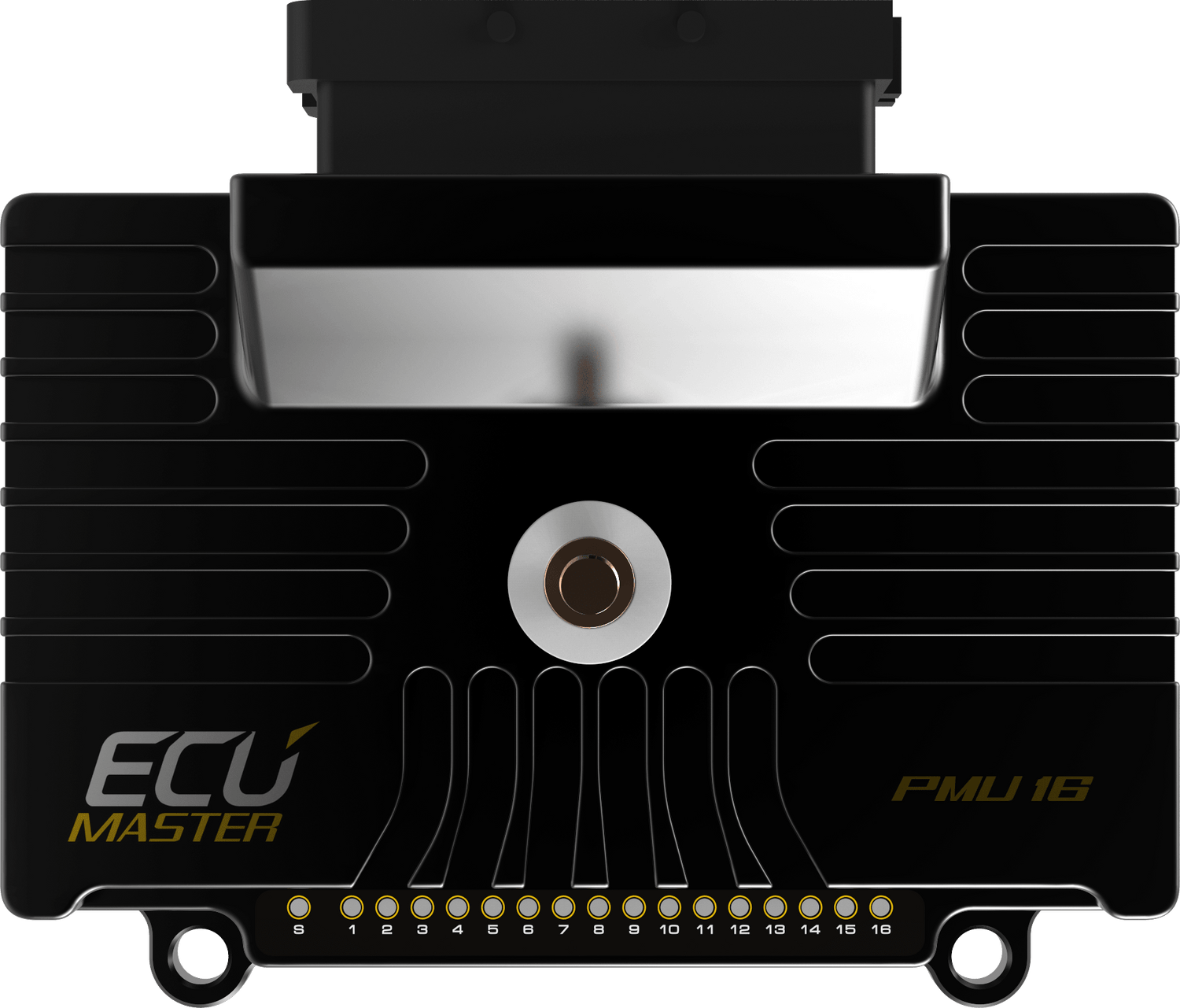

GENERAL
|
| Temperature range |
AECQ100 GRADE1 (-40 to +125˚C) |
| CPU |
32 bits automotive, 90MIPS |
| Reverse polarity protection |
Yes, internal |
| Operating voltage |
6-22V, immunity to transients according to ISO 7637 |
| Enclosure |
IP 60, bespoke CNC machined aluminium |
| Size (mm) and weight(g) |
131x112x32.5, 345g |

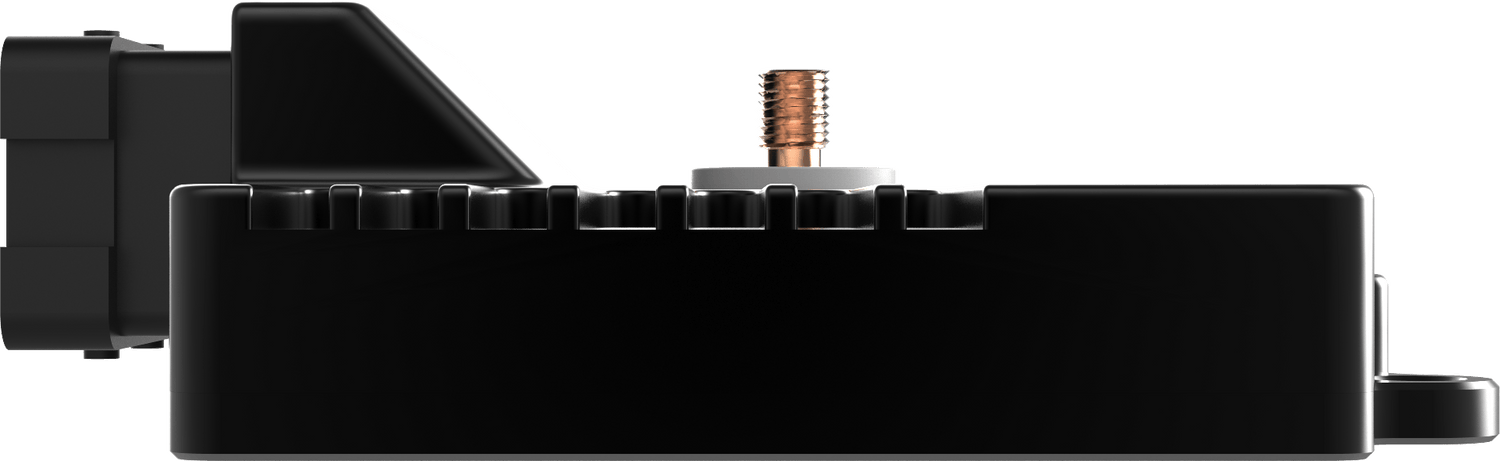

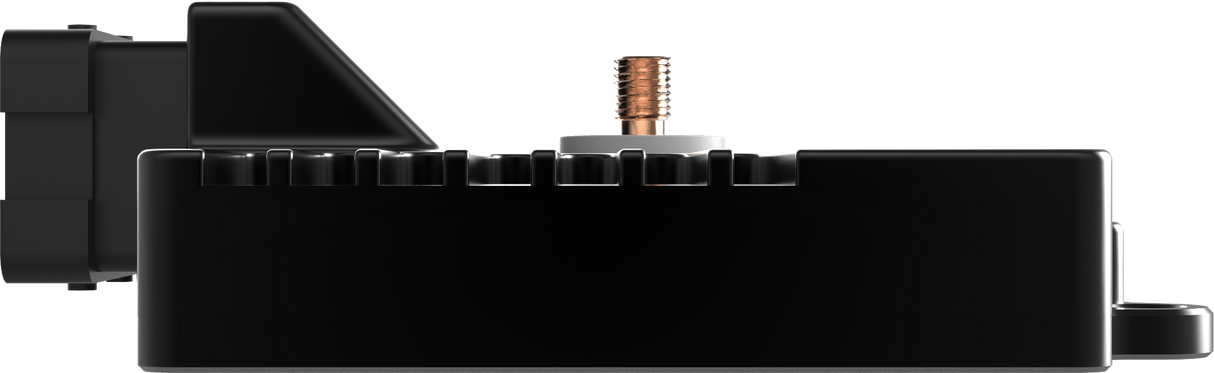

| Connectors |
1 x 39 Automotive connector,
1 x M6 stud for battery connection
|
| PC communication |
CAN (ECUMASTER USBtoCAN, PEAK CAN, KVASER) |
OUTPUTS
|
| High current outputs |
10 x 25A(cont.), 6 x 15A(cont.) with overcurrent and overheating protection. Outputs may be paired to increase continuous current capability. Current and voltage is measured for each output |
| Total current output |
150A continuous |
| Output current control step |
100mA |
| Wipers output |
Dedicated output with wiper braking feature |
| +5V |
Monitored 5V, 500mA output for powering external sensors. |
INPUTS
|
| Analog inputs |
16 inputs, 10 bit resolution, 0-5V (protected), with software selectable 10K Ohm pullup and pulldowns |
| CAN Keypads |
2 x Ecumaster keypads (4, 6, 8, 12 keys) |
OTHER
|
| Output state indication |
16 bicolour LEDs |
| Accelerometer/Gyroscope |
3D accelerometer with 3D gyroscope for logging and crash detection |
| Real time clock |
Yes, super capacitor for backup power (up to 3 days) |
